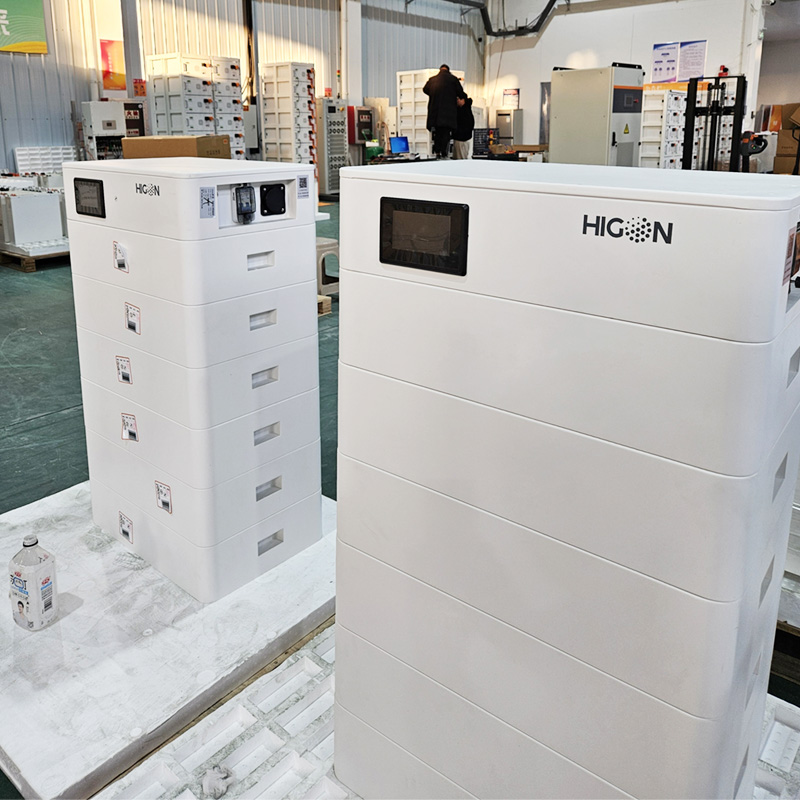

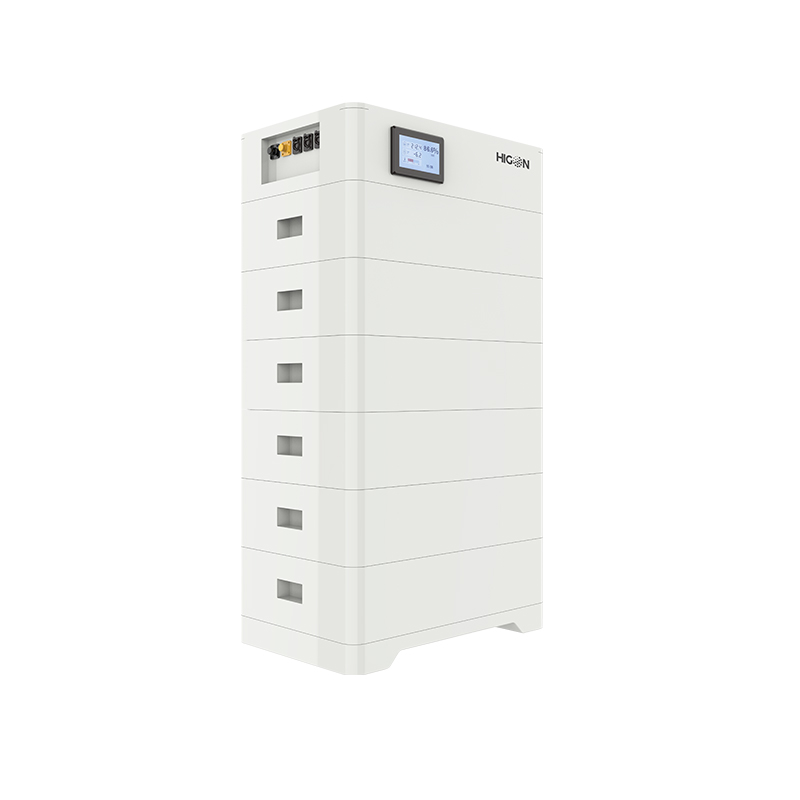

The STACK Series is an advanced high-voltage residential energy storage system designed to address the growing energy demands of today’s households. As energy consumption increases, the need for efficient, safe, and reliable storage solutions becomes more critical. The Higon STACK Series stands out as the perfect option for homeowners looking to optimize their energy management while ensuring durability, performance, and safety over the long term.
Model No. :
STACK 15-40kWhWarranty :
10 YearsNominal Battery Energy :
15.36-40.96 kWhNominal Voltage :
153.6Vdc-409.6VdcBattery Capacity :
100AHDimension(mm) :
600*400*838Weight(kg) :
215Calendar Life :
6000 TimesCertification & Safety Standard :
CE/UN38.3
High-Voltage Stack Design: This innovative design enables modules to be connected in series, simplifying installation by eliminating complex cable connections and enhancing overall efficiency.
Advanced LiFePO₄ Battery Technology: Utilizing cutting-edge lithium iron phosphate (LiFePO₄) cells, the system ensures exceptional safety, reliability, and an impressive cycle life.
Flexible Capacity Options: Choose from a range of configurations, from 5 kWh to 40 kWh, to meet your specific energy storage requirements.
Smart Real-Time Monitoring: Track battery performance and status in real-time with remote software updates and an LCD data display for easy management.
Wide Temperature Range: Designed to function efficiently in temperatures from -20°C to 55°C, making it suitable for various climate conditions.
Comprehensive Safety Features: Equipped with explosion relief devices and fire protection systems that activate in under three seconds, ensuring safe and reliable operation.
Eco-Friendly Construction: With an IP65 protection rating and a ≥C2 anti-corrosion rating, the system is built for durability and environmental resilience.
Long Cycle Life: Retains 70% of its capacity after 6,000 cycles at 25°C, ensuring long-term energy storage and independence.
10-Year Warranty: Enjoy peace of mind with a comprehensive 10-year warranty, ensuring lasting performance and reliability.
Specification of STACK Series
Model | STACK-15 | STACK-20 | STACK-25 | STACK-30 | STACK-35 | STACK-40 |
Battery Module Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
Battery Module Quantity | 3 | 4 | 5 | 6 | 7 | 8 |
Nominal Voltage (V) | 153.6 | 204.8 | 256 | 307.2 | 358.4 | 409.6 |
Nominal Capacity (KWH) | 13.15 | 20.48 | 25.60 | 30.72 | 35.84 | 40.96 |
Usable Energy (KWH) | 6.144 | 19.35 | 24.19 | 29.03 | 33.84 | 38.70 |
Discharge Voltage (V) | 120~144 | 160~192 | 200~240 | 240~288 | 280~336 | 320~384 |
Charge Voltage (V) | 168~175.2 | 224~233.6 | 280~292 | 336~350.4 | 392~408.8 | 448~467.2 |
Recommend Charge/ Discharge Current (A) |
50 | 50 | 50 | 50 | 50 | 50 |
Peak Charge/ Discharge Current(A) |
100 | 100 | 100 | 100 | 100 | 100 |
Dimensions (W*D*H) | 600*400*677 | 600*400*838 | 600*400*999 | 600*400*1160 | 600*400*1321 | 600*400*1482 |
Net Weight (kg) | 170 | 215 | 260 | 305 | 350 | 395 |
Communicaiton | RS485/RS232/CAN | |||||
Working Temperature | 0℃~50℃ Charge - 10℃~50℃ Disharge | |||||
Shelf Temperature | -20℃~60℃ | |||||
Protection Level | IP54 | |||||
Battery Module Name7 | HV5150 | |||||
Expansion | Max. 3 Stacks can be connected in parallel | |||||
Certification | CE/IEC/UL/UN38.3/MSDS | |||||
Design Life | 10 years+ | |||||
Cycle Life | >6000 | |||||
Warranty | 10 years |
Application Scenarios
Higher Power Output:
HV lithium batteries can deliver higher power output, making them suitable for applications requiring rapid acceleration or high energy demands, such as electric vehicles.
Increased Energy Density:
These batteries typically have higher energy density, allowing them to store more energy in a smaller and lighter package, which is beneficial for portable electronics and electric vehicles where space and weight are crucial factors.
Improved Performance:
HV lithium batteries often exhibit better performance characteristics, such as faster charging times and longer cycle life, leading to enhanced reliability and durability over time.
Longer range:
In electric vehicles, higher voltage batteries are able to store more energy, thus providing a longer driving range.
Smaller size and lighter weight:
Higher voltage batteries can provide the same amount of power with fewer cells, resulting in smaller and lighter batteries.
Charge faster:
Higher voltage batteries can charge faster because they can absorb more energy in less time.
More efficient:
Higher voltage batteries can be more efficient because they reduce the amount of energy lost due to resistance and heat.
Lower cost:
Higher voltage batteries can reduce the overall cost of a system because they require fewer cells and can be designed with smaller, cheaper components.
Better performance in extreme conditions:
Higher voltage batteries perform better in extreme temperatures and other challenging conditions, making them more reliable and durable.
