Higon 10kW 20kW 30kW Three Phase Grid Tie Solar Panel System For Commercial
Higon 10kW 20kW 30kW Three Phase Grid Tie Solar Panel System For Commercial
Higon 10kW 20kW 30kW Three Phase Grid Tie Solar Panel System For Commercial
Higon 10kW 20kW 30kW Three Phase Grid Tie Solar Panel System For Commercial
Higon 10kW 20kW 30kW Three Phase Grid Tie Solar Panel System For Commercial

Higon 10kW 20kW 30kW Three Phase Grid Tie Solar Panel System For Commercial

Higon One Stop Solar Solution is including design, project analysis, all components supply, in order to provide complete solar solutions for our clients.

  • Model No. :

    GTS-30KW

  • Warranty :

    25 Years

  • Max. Power :

    30kW

  • Output Voltage :

    400V Single Phase 50Hz

  • Installation Application :

    Roof/Ground

  • Certification & Safety Standard :

    CE / TUV
Inquire Now

System Configuration



Model GTS-10KW GTS-20KW

GTS-30KW
Peak Power 10kW 20kW 30kW
Half Cut Mono 560W Solar Panel 18 Pieces 36 Pieces 54 Pieces
DC Disconnect Switch 1 Piece  2 Piece 3 Piece
On Grid Inverter MOD 10KTL3-X MID 20KTL3-X
 MID 30KTL3-X
DC Cable 4mm2 200 Meter 400 Meter 600 Meter
MC4 Connector 8 Pairs 12 Pairs 16 Pairs
Mounting System Roof/Ground Roof/Ground Roof/Ground
PV Installation Tools 1 Set 1 Set 1 Set





Commercial System Components





HIGON WHITE Mono 560W Solar Panel
HG560-72HC10
Peak Power Watts: 560Wp
Maximum Power Voltage: 43.22V
Maximum Power Current: 12.96A
Open Circuit Voltage: 50.68V
Short Circuit Current: 13.76A
Dimensions: 2278×1134×35mm
Weight: 27.8kg
Learn more about Higon Solar Module: https://www.higonsolar.com/solar-module

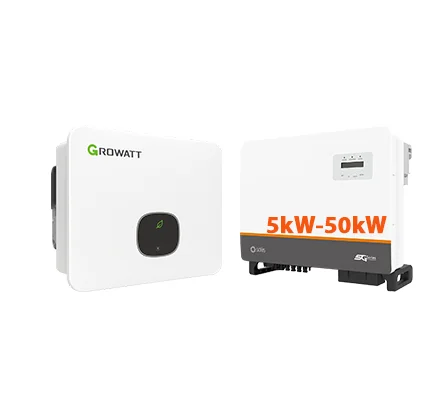

Grid-Tie Inverter

Upto 4 MPPTs, max. efficiency 99%.
Compatible with bifacial modules.
Remote firmware upgrade with simple operation. Overvoltage load reduction and leakage current suppression technology, low failure rate.
DC Combiner Box

DC Fuses, DC Breaker, DC SPD
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A



Online Monitoring System

Open station supports one-click installation and registration Problem support one-click dispatch and navigation Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability
DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Find suitable accessories from here: https://www.higonsolar.com/accessories



PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 30,35mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Find suitable mounting system from here:https://www.higonsolar.com/mounting-system


Added value through solar power: How your company can profit?



PV systems for self-consumption are a worthwhile investment for entrepreneurs, securing their competitiveness and independence – long-term. Photovoltaics are especially rewarding in combination with a storage system.

Good reasons to install a photovoltaic plant on your premises

1. Reducing electricity bills through pure grid connected  solutions for direct self-consumption.

2. Security in the event of short-term blackouts through PV solutions for supplying back-up power.

3. Reducing fuel procurement costs through hybrid solutions or storage in form of thermic energy.

4. Securing 24h drip irrigation supply in farming through solar-powered storage tanks

5. Increasing self-consumption share through storage solutions.

6. Promoting a positive corporate image by installing PV as environmentally friendly power generation.
