Higon 5kW 8kW 10kW Single Phase On Grid Solar Power System For Home
Higon 5kW 8kW 10kW Single Phase On Grid Solar Power System For Home
Higon 5kW 8kW 10kW Single Phase On Grid Solar Power System For Home
Higon 5kW 8kW 10kW Single Phase On Grid Solar Power System For Home
Higon 5kW 8kW 10kW Single Phase On Grid Solar Power System For Home

Higon 5kW 8kW 10kW Single Phase On Grid Solar Power System For Home

Higon One Stop Solar Solution is including design, project analysis, all components supply, in order to provide complete solar solutions for our clients.

  • Model No. :

    GTS-10KW
  • Warranty :

    25 Years
  • Max. Power :

    10KW
  • Output Voltage :

    400V Three Phase 50Hz
  • Installation Application :

    Roof/Ground
  • Certification & Safety Standard :

    CE / TUV


System Configuration



Model GTS-5KW GTS-8KW GTS-10KW
Peak Power 5000W 8000W  10KW
Half Cut Mono 560W Solar Panel 10 Pieces 14 Pieces 18 Pieces
DC Disconnect Switch 1 Piece  1 Piece 1 Piece
On Grid Inverter MIN 5000TL-X MIN 8000TL-X
 MIN 10000TL3-X
DC Cable 4mm2 100 Meter 200 Meter 200 Meter
MC4 Connector 4 Pairs 8 Pairs 8 Pairs
Mounting System Roof/Ground Roof/Ground Roof/Ground
PV Installation Tools 1 Set 1 Set 1 Set



Home System Components







HIGON WHITE Mono 560W Solar Panel
HG560-72HC10
Peak Power Watts: 560Wp
Maximum Power Voltage: 43.22V
Maximum Power Current: 12.96A
Open Circuit Voltage: 50.68V
Short Circuit Current: 13.76A
Dimensions: 2278×1134×35mm
Weight: 27.8kg
Learn more about Higon Solar Module: https://www.higonsolar.com/solar-module

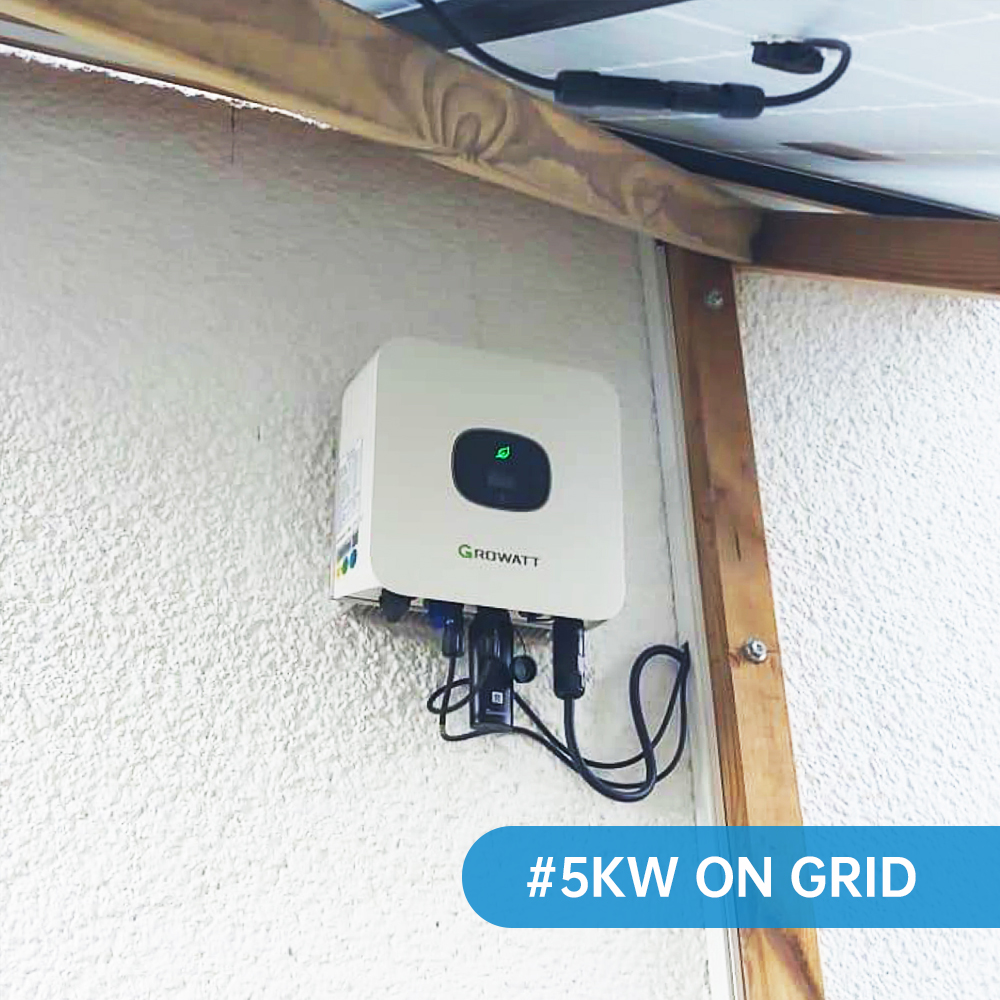

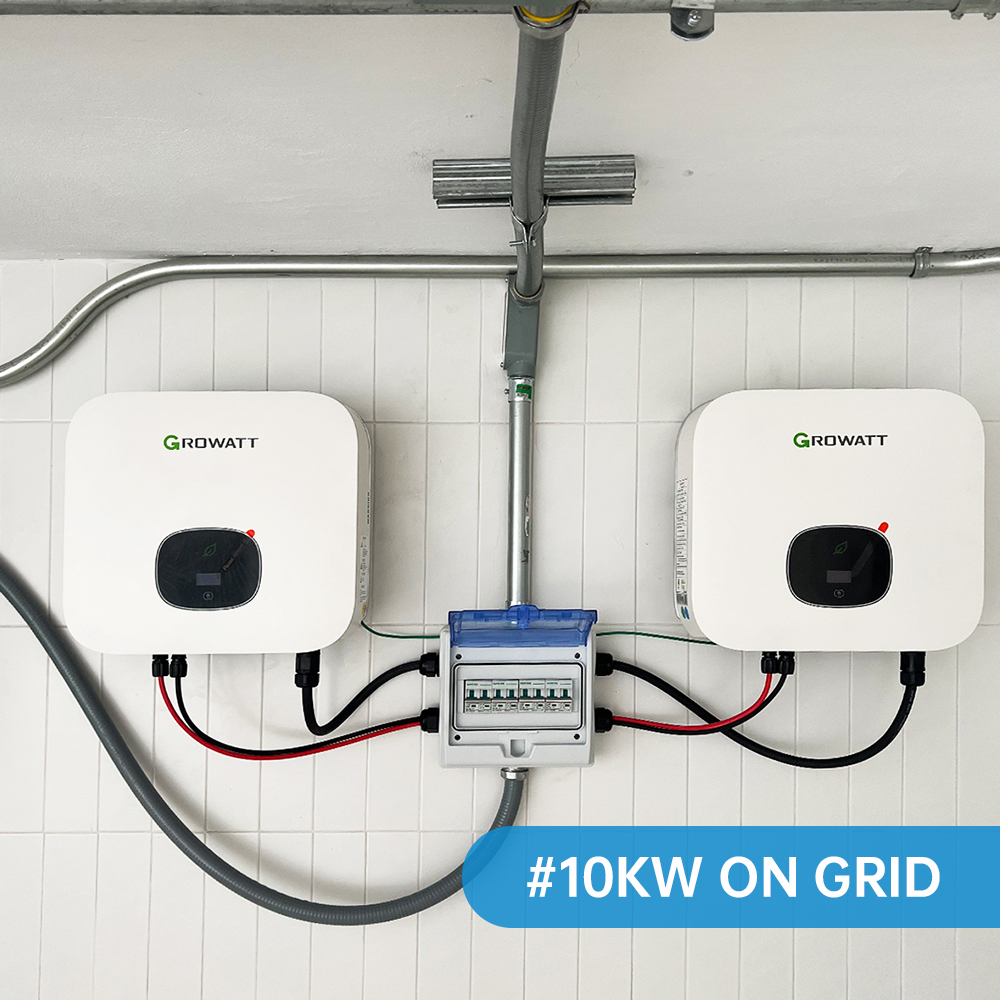

Grid-Tie Inverter


Safety and Reliability

- Type II SPD on DC side

- AFCI function optional

High Yields

- Max. efficiency 98.4%

- Dual MPP trackers

User Friendly

- Touch key and OLED display

-Compact design for one person installation

DC & AC Disconnect Switch

IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
Find suitable accessories from here: https://www.higonsolar.com/accessories



Online Monitoring System

Open station supports one-click installation and registration Problem support one-click dispatch and navigation Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability
DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Find suitable accessories from here: https://www.higonsolar.com/accessories



PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 30,35mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Find suitable mounting system from here:https://www.higonsolar.com/mounting-system



How you can benefit from a PV system



Having an HIGON SOLAR photovoltaic system on your roof lets you turn solar radiation into energy you can use – in many ways.



  1. On-grid, off-grid or hybrid solutions: Perfectly customized to your requirements
  2.

2. Direct self-consumption of solar power: Gaining independence from energy suppliers and reducing your electricity bills



3. Storage to increase self-consumption share: Ensuring that you can use solar power even when the sun is not shining



4. Storage to secure constant supply: Using your own power in the event of short-term blackouts



5. Choose the sustainable option: Clean solar energy benefits not only your wallet, but the environment as well
