Higon Residential Energy Storage Solution

• Maximizing solar self-consumption. During the day, the PV system generates electricity which will be provided to

the loads initially. Then, the excess energy will charge the battery via the hybrid inverter. Finally, the stored energy can be released when the loads require it.

• Providing backup for critical loads: there're independent critical load output port and grid port. It allows critical

loads such as refrigerators, routers, lamps, computers and other critical appliances can be powered when the grid fails. The system can automatically switch to backup mode within 4 milliseconds. Since the automatically time is very short, the critical loads can work smoothly even for Non-inverter type air conditioner.

• Reducing your electricity bills: Thanks to there're 6 time periods for battery charge and discharge. The hybrid inverter allows user to charge the battery at the off-peak time and discharge the battery during peak time. Mean-while, it supports grid peak shaving function which can limit the Max. power from grid.

System Configuration

Model	HYS-10K	HYS-20K	HYS-30K
Rated Power	10kW	20kW	30kW
Half Cut Mono 560W Solar Panel	18 Pieces	36 Pieces	54 Pieces
DC Disconnect Switch	1 Piece	2 Pieces	3 Pieces
Hybrid Inverter	SUN-10K-SG04LP3-EU	SUN-10K-SG04LP3-EU X 2	SUN-10K-SG04LP3-EU X 3
Lithium Battery	10kWh Wall Mount Battery	20kWh Wall Mount Battery	30kWh Wall Mount Battery
PV Cable	200 Meter	400 Meter	600 Meter
MC4 Connector	4 Pairs	8 Pairs	16 Pairs
Mounting System	ROOF/GROUND	ROOF/GROUND	ROOF/GROUND
PV Installation Tools	1 Set	1 Set	1 Set





Residential Hybrid System Components



HIGON WHITE Mono 560W Solar Panel

HG560-72HC10

Peak Power Watts: 560Wp

Maximum Power Voltage: 43.22V

Maximum Power Current: 12.96A

Open Circuit Voltage: 50.68V

Short Circuit Current: 13.76A

Dimensions: 2278×1134×35mm

Weight: 27.8kg

Learn more about Higon Solar Module: https://www.higonsolar.com/solar-module

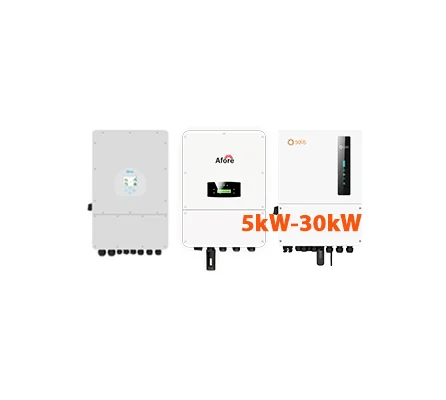

Hybrid Inverter



* Colorful touch LCD, IP65 protection degree
* AC couple to retrofifit existing solar system
* Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
* Max. charging/discharging current of 190A
* 6 time periods for battery charging/discharging
* Support storing energy from diesel generator

Learn more about Deye hybrid inverter: https://www.higonsolar.com/higon-deye-8kw-10kw-12kw-48v-low-voltage-hybrid-energy-storage-inverter

Wall Mounted/Stackable Lithium Battery



The Stackable LFP 4.8-19.2kWh Series lithium battery is tailor made for larger residential. Modular design with advanced LiFePO4 technologies, 4 energy specifications up to 19.2 kWh for your choice with parallel support available, high waterproof level and good heat sink, which offers you various capacities to meet more of your requirements. We provide lithium battery 10 years warranty.

Find best lithium battery from here: https://www.higonsolar.com/low-voltage-lithium-battery



Online Monitoring System



Open station supports one-click installation and registration Problem support one-click dispatch and navigation Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability

DC & AC Disconnect Switch



IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A

Find suitable accessories from here: https://www.higonsolar.com/accessories



DC Cable & MC4 Connector



Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

Find suitable accessories from here: https://www.higonsolar.com/accessories





PV Mounting System



Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.

Mid & End Clamps: 30,35mm

L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

Find suitable mounting system from here:https://www.higonsolar.com/mounting-system



---
