Complete 50kW with 100kWh Hybrid Solar System for House
Complete 50kW with 100kWh Hybrid Solar System for House
Complete 50kW with 100kWh Hybrid Solar System for House
Complete 50kW with 100kWh Hybrid Solar System for House
Complete 50kW with 100kWh Hybrid Solar System for House

Complete 50kW with 100kWh Hybrid Solar System for House

Higon 50KW commercial hybrid solar system work with 100kWh lithium battery storage

  • Model No. :

    HYS-50K

  • Warranty :

    25 Years

  • Max. Power :

    50KW

  • Output Voltage :

    400V Three Phase 50Hz

  • Battery Capacity :

    100kWh(Optional)

  • Installation Application :

    Roof/Ground

  • Certification & Safety Standard :

    CE / TUV
Inquire Now
System Diagram
System Performance
System Configuration
Model
     HYS-100KW
   HYS-300KW
    HYS-500KW
      HYS-1000KW
Mono 600W Solar Panel
180 Pieces
540 Pieces
840 Pieces
1680 Pieces
PV Combiner Box
1 Piece
2 Piece
10 Pieces
20 Pieces
Hybrid Inverter
1X100kW
2X150kW
            1X500kW
1X1MW
Lithium Battery
           150kWh
           600kWh
             1MWh
             2MWh
DC Cable 4mm2
2000 Meter
6000 Meter
8000 Meter
 12000 Meter
MC4 Connector
100 Pairs
200 Pairs
300 Pairs
600 Pairs
Mounting System
                    Customized Based On Installation Roof/Ground
PV Installation Tools
1 Set
1 Set
1 Set
1 Set
System Components
High Efficiency PV Module
* Max Power: 600W-750W
* Technology: TOPCon/HJT/Bifacial
* Low temperature coefficient
* Upto 24% Efficiency
* Low BOS cost & LCOE
* Warranty: 30 Years
* Full Certification

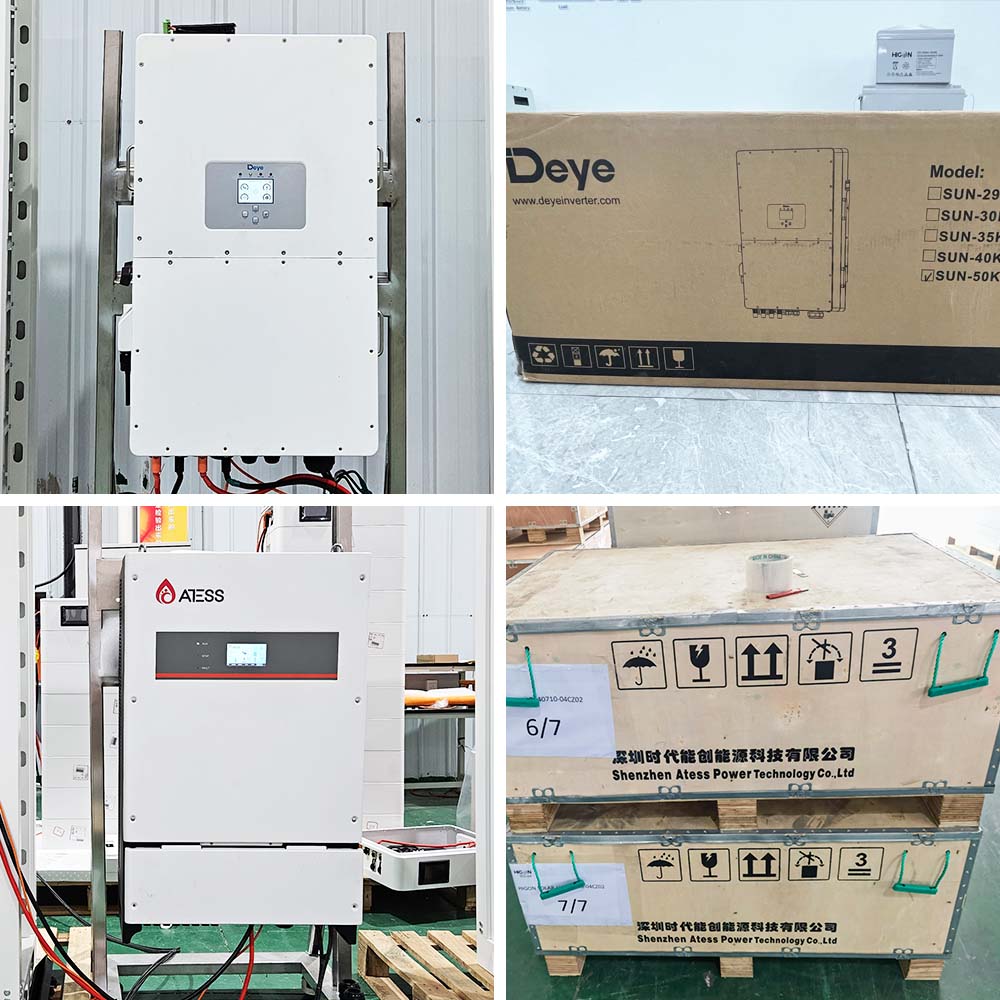

Commercial Hybrid Inverter
* Capacity 50kW-1MW, three phase output for middle-scale commercial & industry use
* Off-grid transfer within 10ms, stable for power supplycharging/discharging
* Dry contact output, support remote control of DG
* Integrated with Isolation Transformer
Long Life Lithium Battery
* LiFePO4: Higher Safe Performance and
* longer cycle life
* Aerosol Fire :Extinguishing System
* Flexible Installation: Stack-Mounted/Wall Mounted
* Wide Compatibility: Compatible with leading
Inverter brands
* Design Life Span: 15 Years
* Warranty: 10 Years
DC Cable & MC4 Connector
* Cross Section: 4mm2, 6mm2 Optional
* Rated Voltage:1000VDC/1500VDC
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:30 Years
PV Mounting System
*Mounting Type:
Tile Roof, Tin Roof, Flat Roof, Ground
* Metarial: Aluminum alloy, hot dip galvanized steel
* Wind Speed: 80M/S
PV Combiner Box
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
Online Monitoring System
Open station supports one-click installation and registration Problem support one-click dispatch and navigation Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability
Warranty Guarantee
System Design
Installation Guide
Projects
