Model No. :
PACK G2 15 Wheel TypeWarranty :
10 YearsNominal Battery Energy :
15kWhNominal Voltage :
51.2VBattery Capacity :
300AhDimension(mm) :
530*877*242mmWeight(kg) :
113Calendar Life :
6000 timesCertification & Safety Standard :
CE/UN38.3

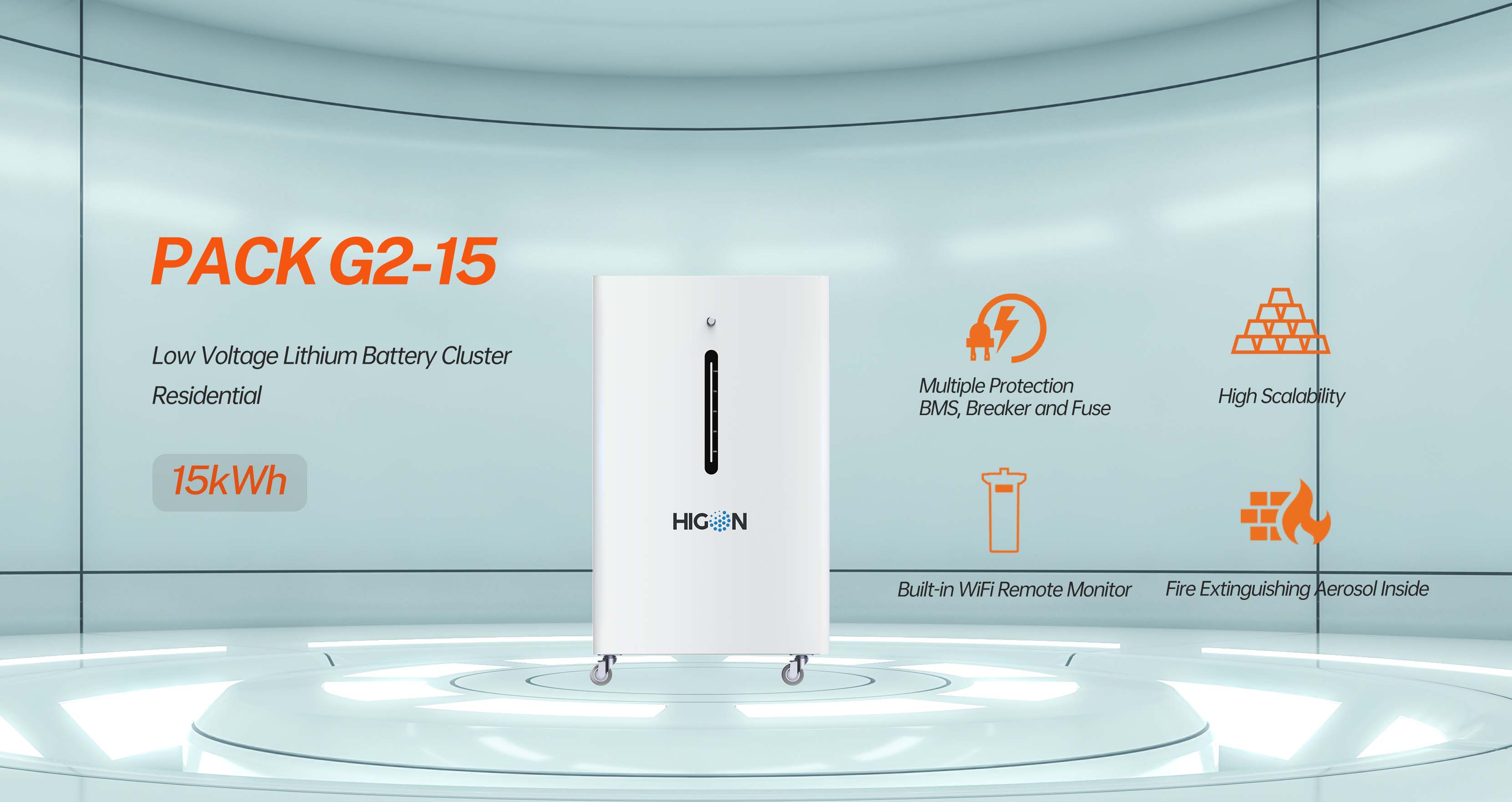

Specification of PACK G2-15
| Model | PACK G2-15 |
| Battery Module Type | LiFePO4 |
| Nominal Voltage (V) | 51.2 |
| Nominal Capacity (KWH) | 14.336 |
| Operatin Voltage (V)) | 44.8~57.6 |
|
Recommend Charge/
Discharge Current (A)
|
180 |
|
Max Charge/
Discharge Current(A)
|
200 |

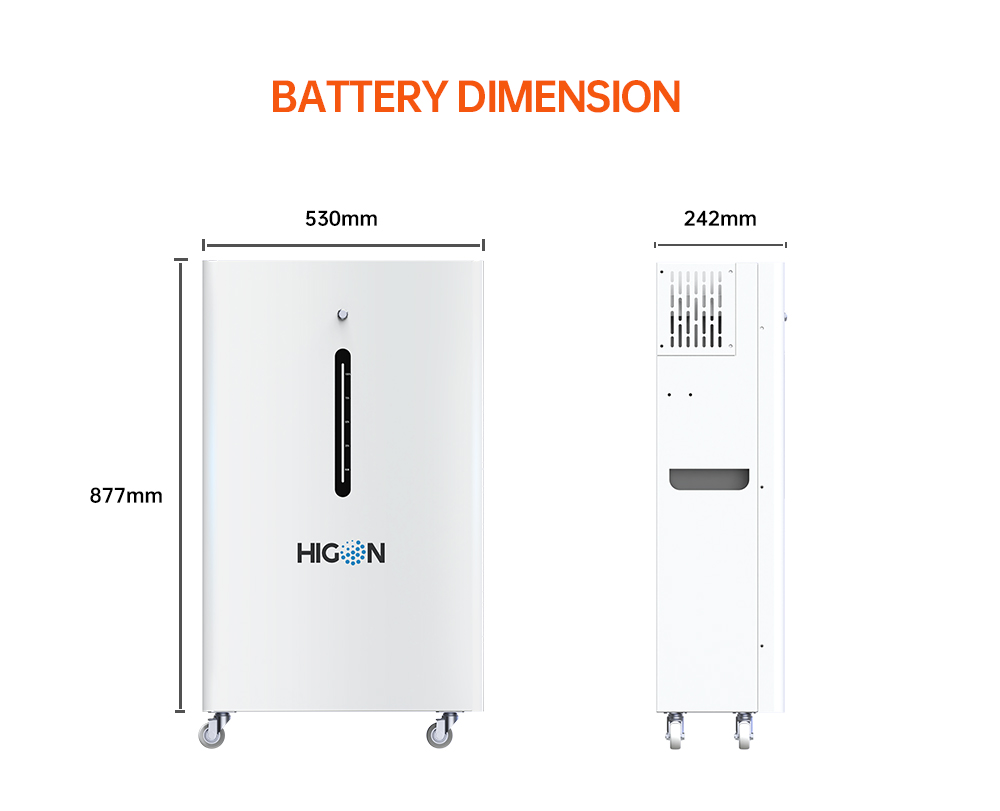

| Dimensions (W*D*H) | 530*877*242mm |
| Net Weight (kg) |
113 |
| Communication | RS485/RS232/CAN |
| Working Temperature |
0℃~50℃ Charge - 10℃~50℃ Discharge
|
| Shelf Temperature |
-20℃~55℃
|
| Protection Level | IP20 |
| Expansion | Up to 15 units in parallel |
| Certification | CE/IEC/UL/UN38.3/MSDS |
| Design Life | 10 years+ |
| Cycle Life | >6000 |
| Warranty | 10 years |

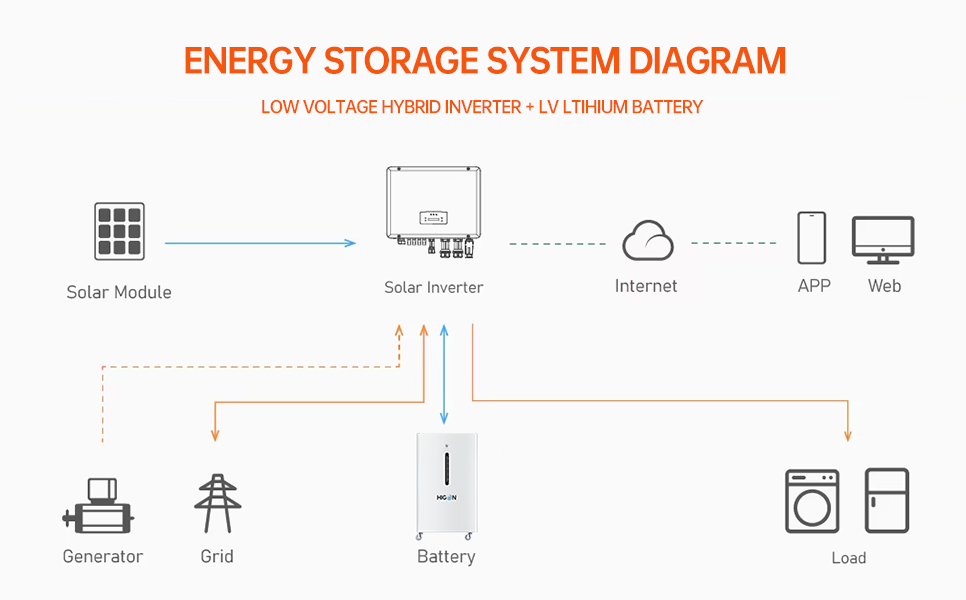

Application Scenarios
