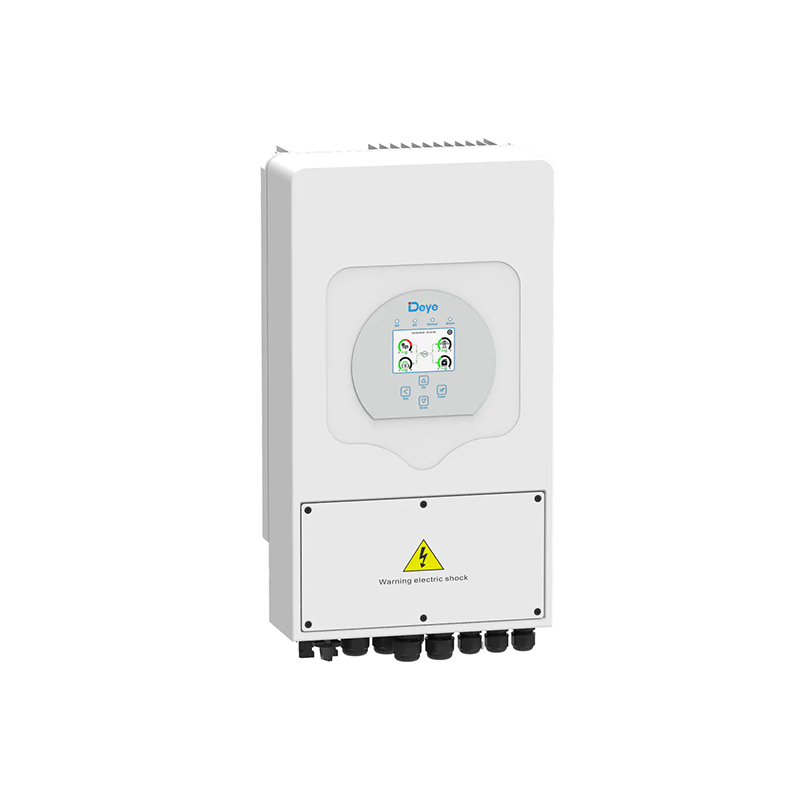

SUN-3.6/5/6/7.6/8K-SG05LP1-EU, Hybrid, 48Vdc Battery, 230V Sinlge Phase 50Hz
Model No. :
SUN-3.6/5/6/7.6/8K-SG05LP1-EUWarranty :
5 Years (10 Years Optional)Max. Power :
3.5KW-8KWOutput Voltage :
230V Single Phase 50HzBattery Voltage :
48VdcInput Voltage :
150-425Dimension(mm) :
330×580×232Weight(kg) :
24Certification & Safety Standard :
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
SUN-3.6/5/6/7.6/8K-SG05LP1-EU | 3.6-8kW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
Higher yields / Safe & Reliable / Smart / User-friendly
SUN 3.6/8K-SG05，hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3.6/8K-SG05. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.
It equipped with RS485/CAN port for battery communication
Efficient ● Dual MPPT with up to 99.9% efficiency ● Up to 22A PV input current perfect for high power modules Reliable ● Outputs high quality pure sine wave AC power● 8-10kW load power to meet the needs of most households User-friendly ● Industrial design with a modern aesthetic look● Easy to install and simple to use Scalable ● Up to 6pcs in parallel● Both split phase and three phase parallel options All-in-one ● Solar Charger Controller up to 200A charging current● Support for Li-ion battery BMS communication Intelligent ● Exclusive Li-ion battery BMS dual activation● Time-slot function to save cost with peak-valley tariff
