● Up to 27A PV input current perfect for high power modules
● Outputs high quality pure sine wave AC power
● 8-11kW load power to meet the needs of most households
● Can work without battery mode
● Industrial design with a modern aesthetic look
● Easy to install and simple to use
● Up to 6pcs in parallel
● Both sp7lit phase and three phase parallel options
● Solar Charger Controller up to 200A charging current
● Support for Li-ion battery BMS communication
● Exclusive Li-ion battery BMS dual activation
● Time-slot function to save cost with peak-valley tariff
Model No. :
HITTO VM IV seriesWarranty :
2 YearsMax. Power :
8000W / 11000WOutput Voltage :
230V Single Phase 60HzBattery Voltage :
48VdcInput Voltage :
90-450VdcDimension(mm) :
420*561.6*152.4mmWeight(kg) :
20kgDisplay :
LCDCertification & Safety Standard :
CE
Datasheet
Models |
8000W |
11000W |
AC mode |
|
|
Rated input voltage |
220/230Vac 50/60Hz |
220/230Vac 50/60Hz |
Frequency |
50Hz/ 60Hz (Auto detection) |
50Hz/ 60Hz (Auto detection) |
Inverter mode |
|
|
Output voltage waveform |
Pure sine wave |
Pure sine wave |
Rated output power (VA) |
8000 |
11000 |
Rated output power (W) |
8000 |
11000 |
Power factor |
1 |
1 |
Rated output voltage (Vac) |
230Vac |
230Vac |
Bypass breaker specifications |
120A |
150A |
Rated battery input voltage |
48V (Minimum starting voltage 44V) |
48V (Minimum starting voltage 44V) |
AC charging |
|
|
Battery type |
Lead acid or lithium battery |
Lead acid or lithium battery |
Maximum charge current |
120A |
150A |
Charge voltage range |
40-60Vdc |
40-60Vdc |
PV charging |
|
|
Maximum PV open circuit voltage |
500Vdc |
500Vdc |
PV operating voltage range |
90-150Vdc |
90-150Vdc |
Maximum output power |
4000W*2 |
5500W*2 |
PV charging current range (can be set) |
120A |
150A |
Communication interface |
|
|
Communication interface |
USB/RS485(WiFi/GPRS)/Dry node control |
|
Humidity range |
<60dB |
|

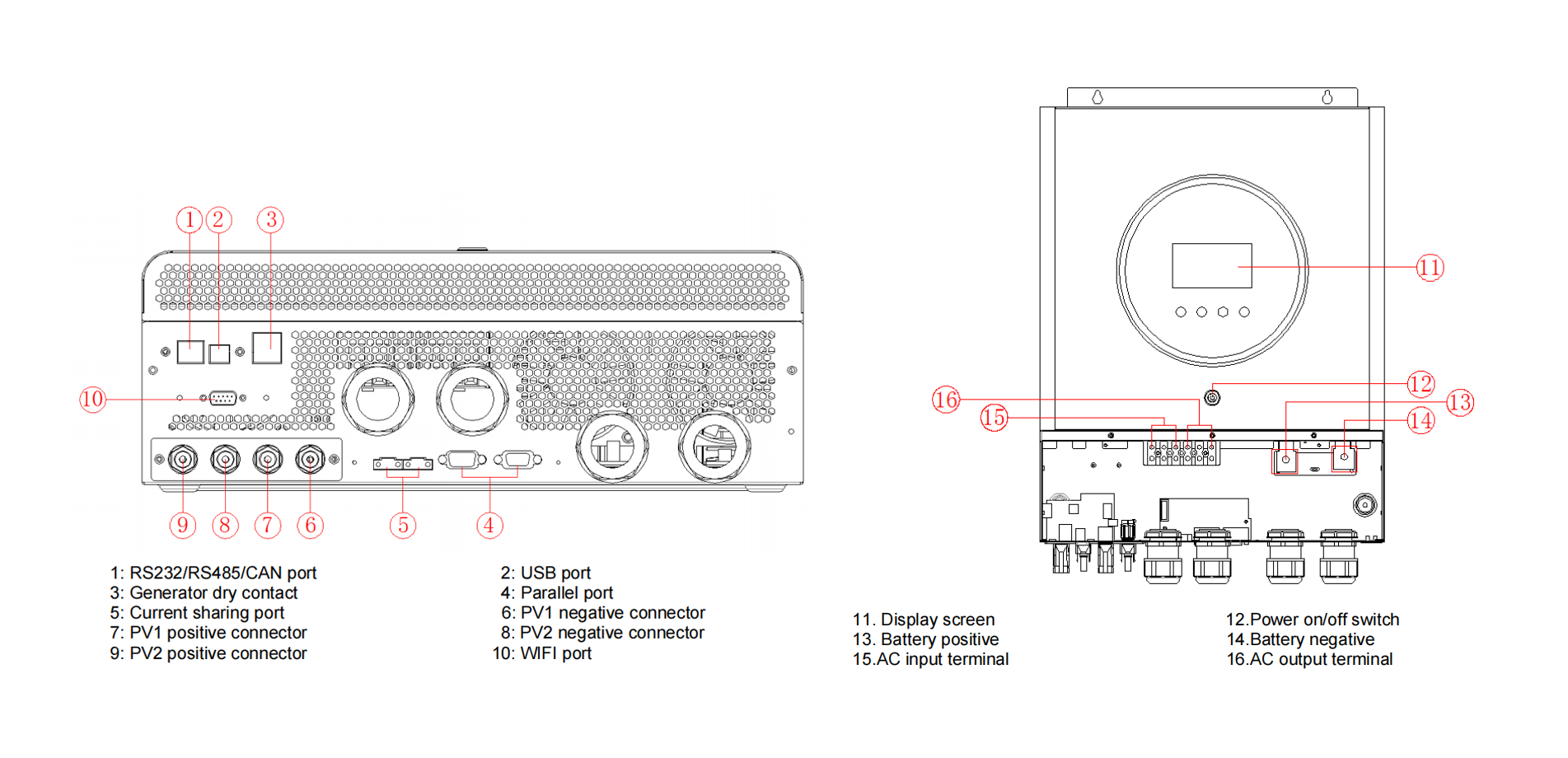

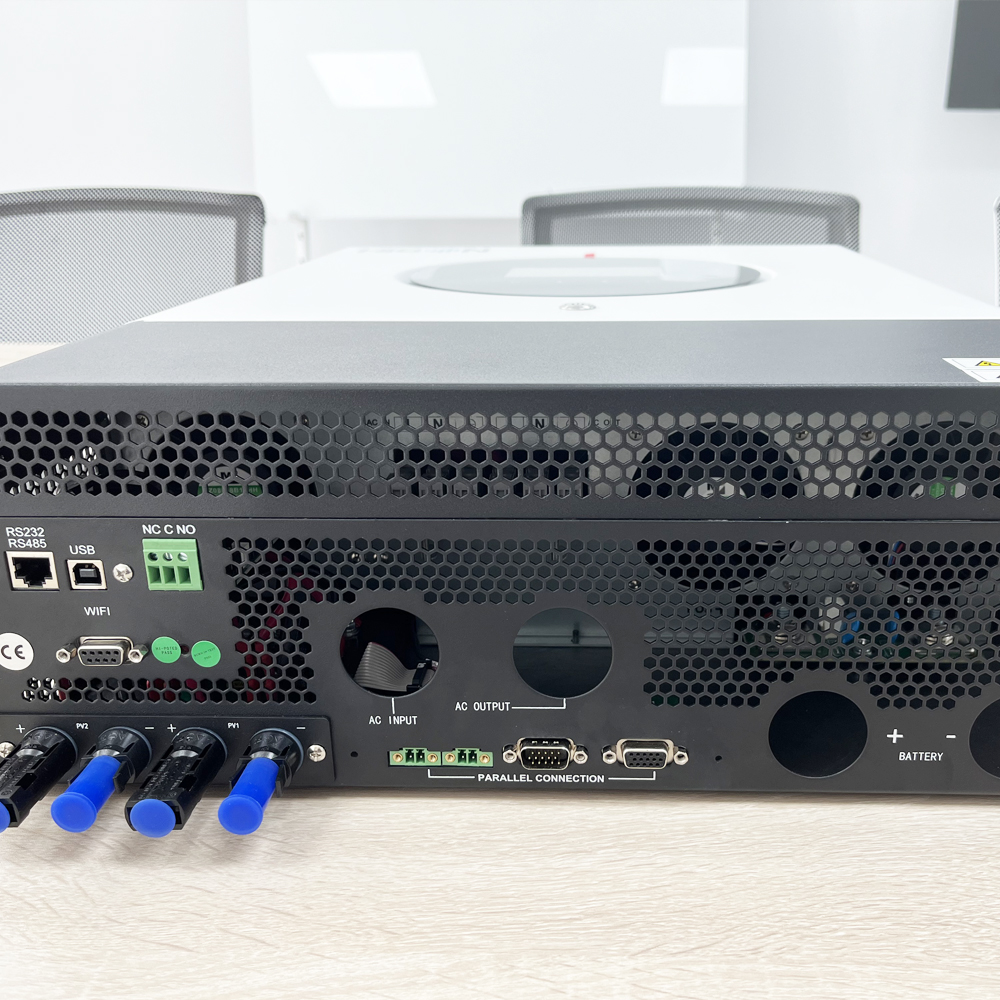

Product Overview

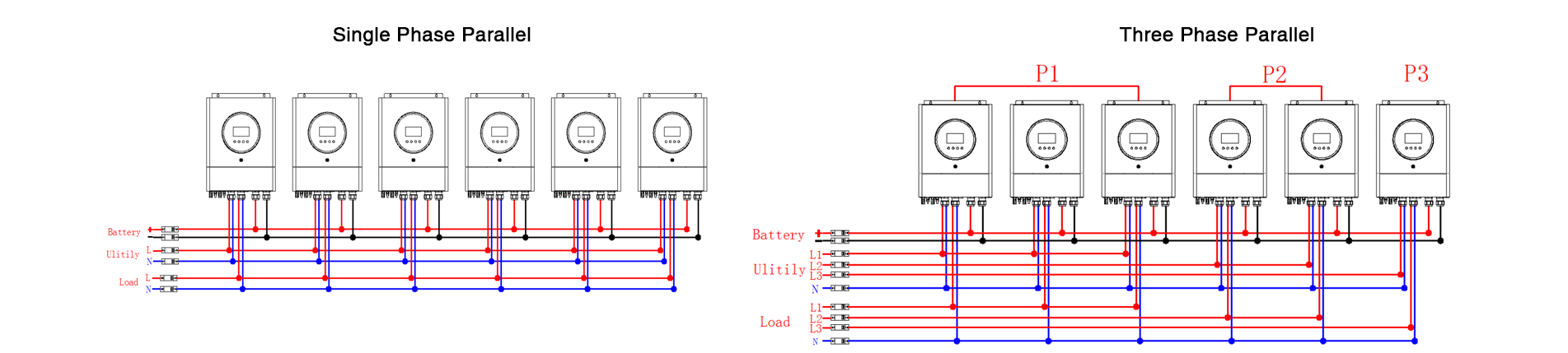

Parallel Diagram

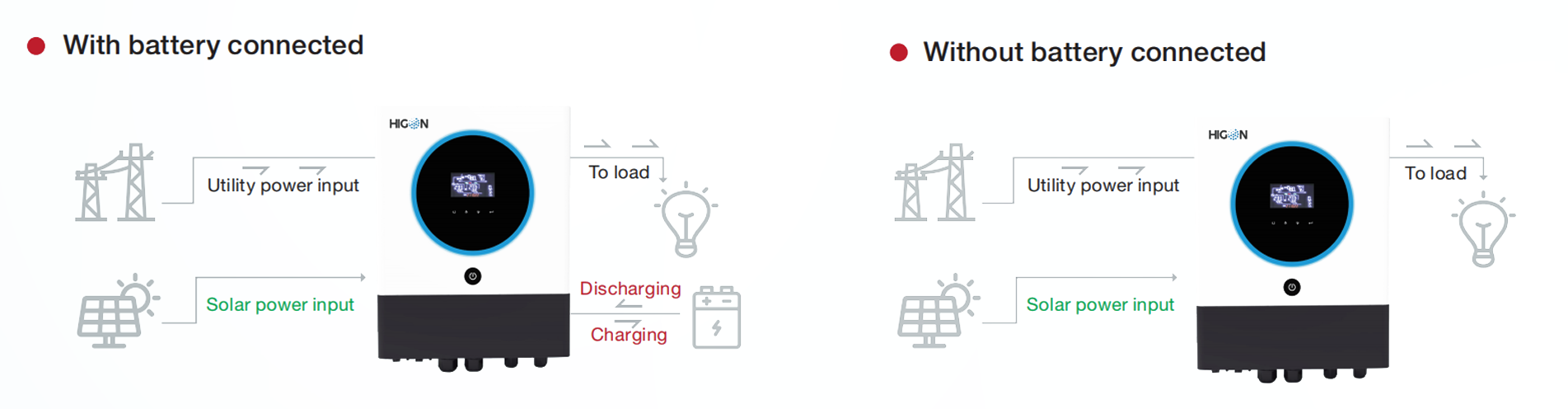

Without Battery Working Mode
