/New 314Ah Grade A High Voltage Lithium Battery 112kWh 241kWh Battery Cluster
314AH

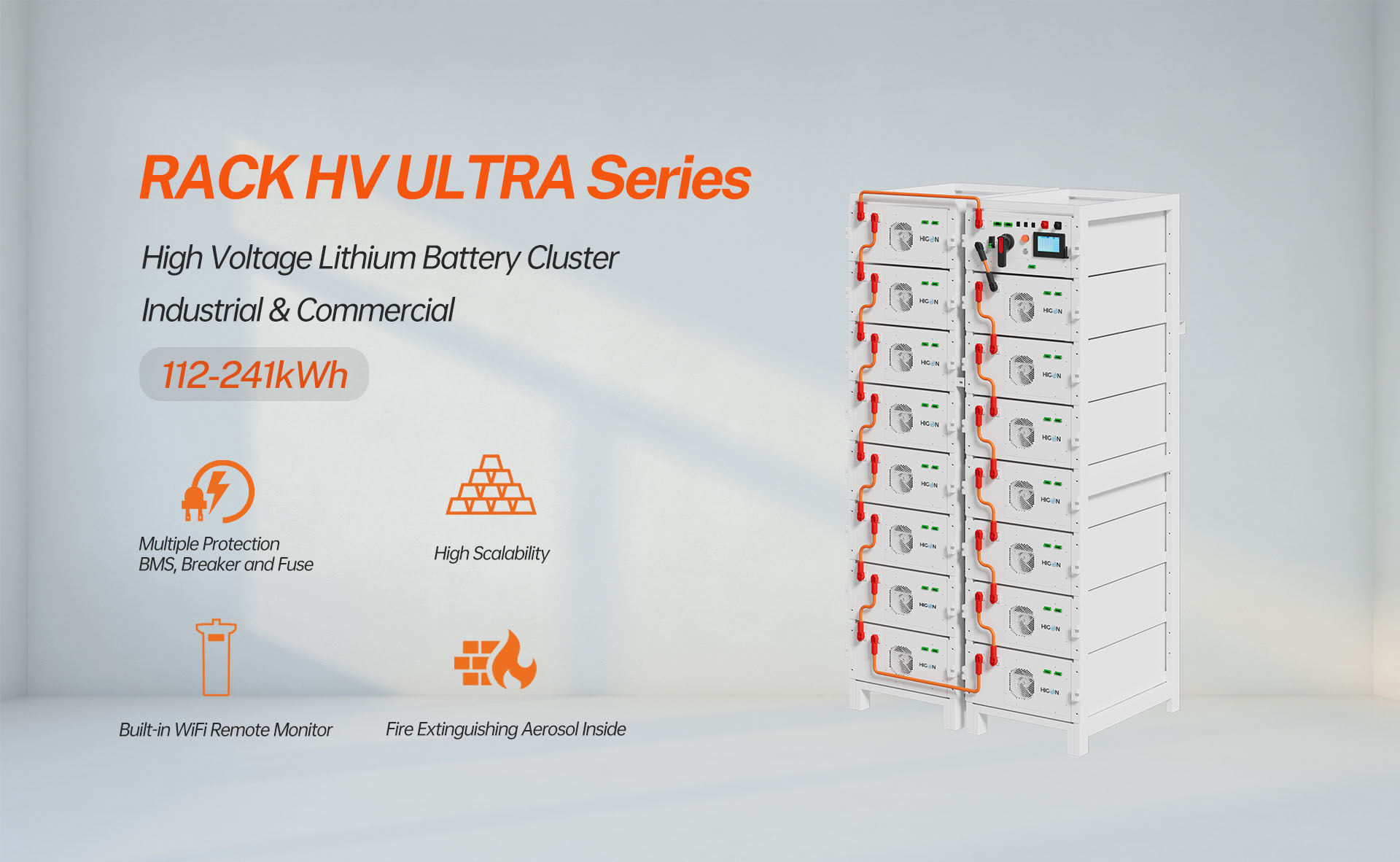

New 314Ah Grade A High Voltage Lithium Battery 112kWh 241kWh Battery Cluster

RACK HV ULTRA is a high-performance embedded LiFePO4 battery module, designed for fast installation and easy maintenance. Featuring advanced safety mechanisms, an intelligent Battery Management System (BMS), and an eco-friendly design, it’s the perfect choice for power backup and renewable energy storage. RACK HV ULTRA offers a reliable and efficient solution for small-scale commercial and industrial energy storage systems (ESS). Built for performance and dependability, this cutting-edge battery system meets diverse power management needs while supporting sustainable energy solutions.

  • Model No. :

    RACK HV ULTRA
  • Warranty :

    10 Years
  • Nominal Battery Energy :

    113~241kWh
  • Nominal Voltage :

    358V~768Vdc
  • Battery Capacity :

    51.2V 314AH
  • Dimension(mm) :

    Customzied
  • Weight(kg) :

    Customzied
  • Calendar Life :

    8000 Times
  • Certification & Safety Standard :

    UN38.3/CE/MSDS



Key Features:

  • High Performance: With a capacity of 16kWh and the ability to support over 8000 cycles, the RACK HV ULTRA offers long-lasting energy support, ensuring smooth and uninterrupted operations.

  • Intelligent Management: Featuring smart cloud-based monitoring, the RACK HV ULTRA provides real-time insights into your energy usage and battery status, optimizing performance and reducing electricity costs.

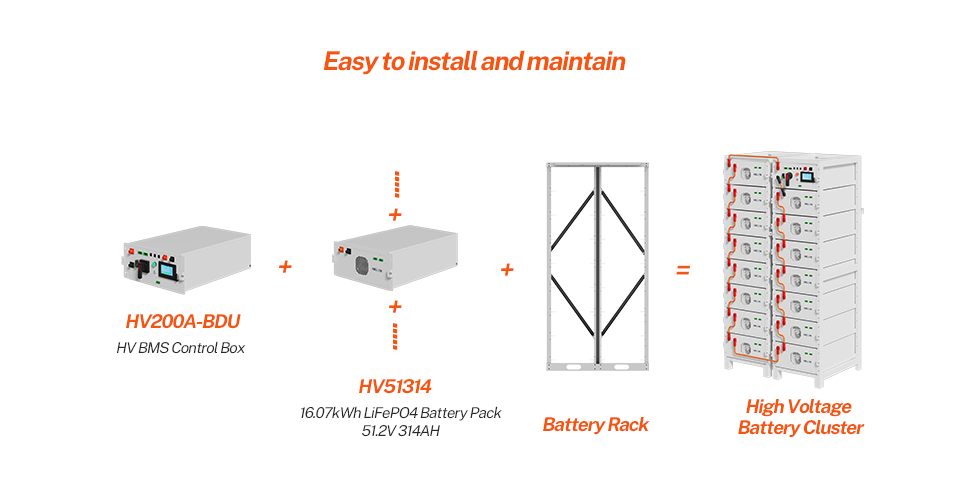

  • Flexible Configuration: The system can support multiple racks, with up to 15 battery modules in series, offering scalability to meet your growing energy needs.

  • Effortless Installation: Weighing just 113kg per module and supported by a comprehensive user manual, the RACK HV ULTRA ensures an easy and quick installation process.

  • Safety First: With an advanced battery management system (BMS) and robust safety measures to prevent over-discharge, over-charge, and short circuits, the RACK HV ULTRA prioritizes the protection and longevity of your energy system.

  • Robust Design: Designed to endure tough environmental conditions, the RACK HV ULTRA has a high IP rating and can operate efficiently across a wide range of temperatures, ensuring durability in any setting.

  • Warranty Assurance: Benefit from a 10-year warranty with a full replacement guarantee, covering up to 8000 cycles of use, for added peace of mind.



Specifications of Commercial RACK HV ULTRA Series



Model RACK HV ULTRA-160 RACK HV ULTRA-177 RACK HV ULTRA-193
Rack Type LiFePO4
LiFePO4
LiFePO4
Battery Module Type HV51314
HV51314
HV51314
Battery Module Quantity (Unit) 10 11 12
Nominal Energy (KWH) 160.77
176.84
192.92
Nominal Capacity (AH) 314
314
314
Norminal Voltage (V) 512
563.2
614
Operating Vol Range (V)
448~568
492.8~624.8
537.6~681.6
Max.Power Output (KW)
160.77
176.84
192.92
Recommend Charging Current (A)
200
200 200
Recommend Discharging Current (A) 200 200 200
Dimension(W* D* H,mm)
1080*870*1620
1080*870*1620
1080*870*1860
Net Weight (kg) 1300 1420 1550
Module Quantity and Configuration
10 Units in series
1 BMU
11 Units in series
1 BMU
12 Units in series
1 BMU



Model RACK HV ULTRA-209 RACK HV ULTRA-225 RACK HV ULTRA-241
Rack Type LiFePO4
LiFePO4
LiFePO4
Battery Module Type HV51314 HV51314 HV51314
Battery Module Quantity (Unit) 13 14 15
Nominal Energy (KWH) 209 225.08 241.15
Nominal Capacity (AH) 314 314 314
Norminal Voltage (V) 665.6 716.8 768
Operating Vol Range (V) 582.4~738.4  627.2~795.2 672~852
Max.Power Output (KW) 209 225.08 241.15
Recommend Charging Current (A) 200 200 200
Recommend Discharging Current (A) 200 200 200
Dimension(W* D* H,mm) 1080*870*1860 1080*870*2100 1080*870*2100
Net Weight (kg) 1650 1780 1900
Module Quantity and Configuration
13 Units in series
1 BMU
14 Units in series
1 BMU
15 Units in series
1 BMU

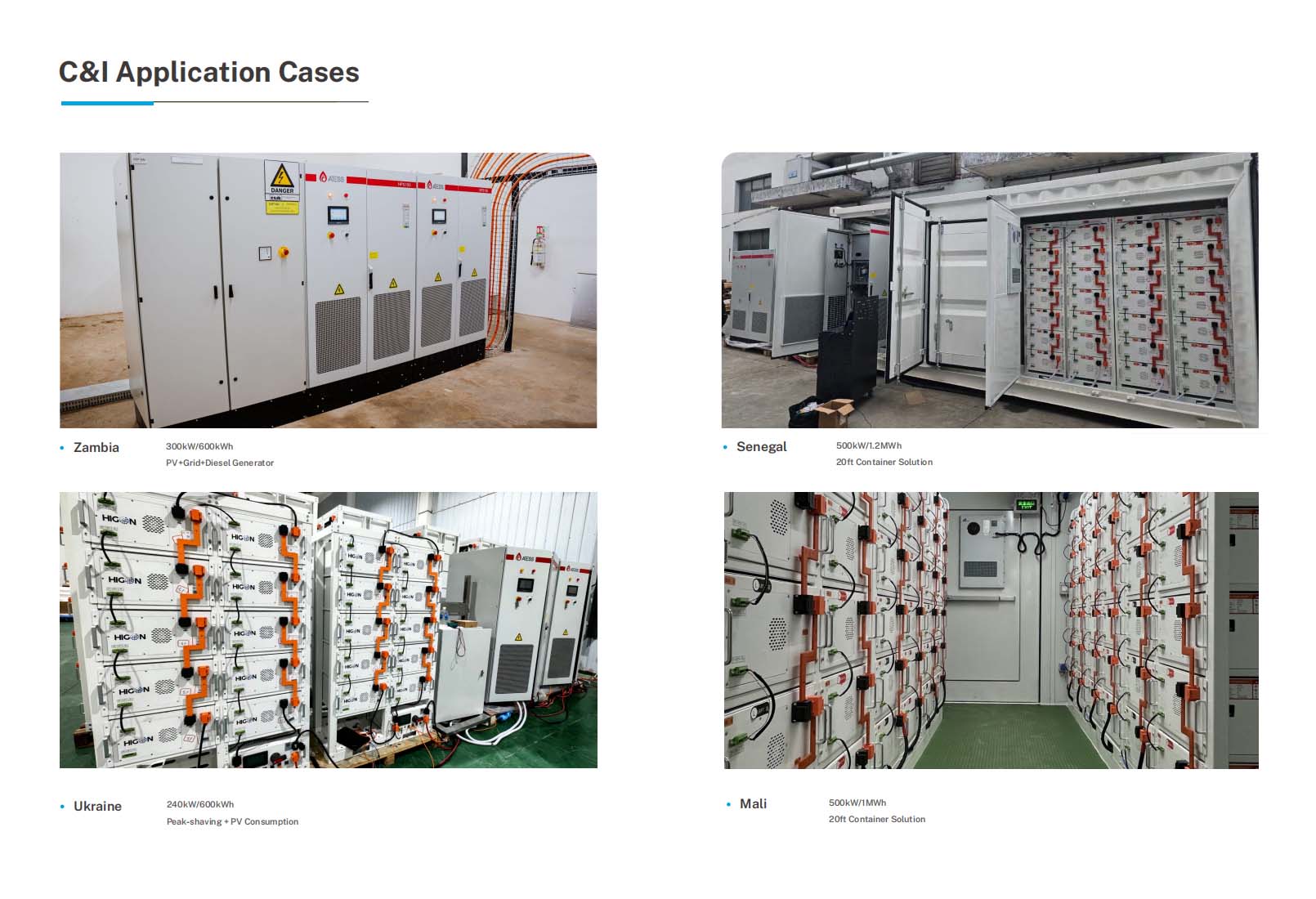

Applicaiton Scenarios

  • #

              Farm

  • #

     Shopping mall

  • #

          Factory

  • #

    Office Building

The advantages of HV Lithium Batteries



Higher Power Output:

HV lithium batteries can deliver higher power output, making them suitable for applications requiring rapid acceleration or high energy demands, such as electric vehicles.

Increased Energy Density:

These batteries typically have higher energy density, allowing them to store more energy in a smaller and lighter package, which is beneficial for portable electronics and electric vehicles where space and weight are crucial factors.

Improved Performance:

HV lithium batteries often exhibit better performance characteristics, such as faster charging times and longer cycle life, leading to enhanced reliability and durability over time.

Longer range:

In electric vehicles, higher voltage batteries are able to store more energy, thus providing a longer driving range.

Smaller size and lighter weight:

Higher voltage batteries can provide the same amount of power with fewer cells, resulting in smaller and lighter batteries.

Charge faster:

Higher voltage batteries can charge faster because they can absorb more energy in less time.

More efficient:

Higher voltage batteries can be more efficient because they reduce the amount of energy lost due to resistance and heat.

Lower cost:

Higher voltage batteries can reduce the overall cost of a system because they require fewer cells and can be designed with smaller, cheaper components.

Better performance in extreme conditions:

Higher voltage batteries perform better in extreme temperatures and other challenging conditions, making them more reliable and durable.
