Higon new off-grid system mppt solar controller 50A&60A
1, high-end design, color screen, touch button
2, four-stage charging to extend battery life
3, tracking efficiency up to 99.8%
4, perfect protection function
5, expandable APP, host computer, and unlimited parallel connection
6, monitor the entire system status, diagnose system matching, etc.

Characteristics

• High-efficient MPPT algorithm, MPPT efficiency ≥99.5%.
  * Support Seal/Gel/Flooded battery and customized batteries.
  * Four types of load mode selection: ON/OFF, PV voltage control, Dual Time control, PV+Time control.
  * Current-limited charging function.
  * High definition LCD display.
  * Intelligent interaction experience.
  * Dual RS485 communication ports, support for parallel communication.
  * Support PC and APP (Android & iOS) monitoring.
  * CE, RoHS, FCC certifications approved.

  Technical Parameter






  RUNNER Series			RUNNER -50A	RUNNER -60A
  Product Category	Controller properties		MPPT (Maximum power point tracking)
  	MPPT efficiency		≥99.5%
  	Standby power		0.5W~1.2W
  	System voltage		12V/24V/36V/48V auto work
  	Heat-Dissipating method		Fan-cooling
  Input Characteristics	Max.PV input voltage(Voc)		DC150V
  	Start charge voltage point		Battery voltage + 3V
  	Low input voltage protection point		Battery voltage + 2V
  	PV rated power	12V system	650W	780W
  		24V system	1300W	1560W
  		36V system	1950W	2340W
  		48V system	2600W	3120W
  Charge Characteristics	Battery types (Default Gel battery)		Gel battery, Sealed lead-acid battery, Flooded battery, User-defined
  	Charge rated current		50A	60A
  	Charge method		3 stages: CC (Constant current) - CV (Constant voltage) - CF (Floating charge)
  LOAD Characteristics	Load voltage		Same as battery voltage
  	Load rated current		30A
  	Load control mode		On, Off , PV voltage control, Dual-time control, PV + Time control
  	Low voltage protection		The default protection point is 10.5V, and it is restored to 11V (can be set)
  	Setup method		PC software / Mobile APP / controller display
  Display & Communication	Display		High-definition LCD segment code backlight display
  	Dry contact access voltage		5V ~ 12V
  	Communication		Dual RJ45 port / RS485 / support PC software monitoring / support WiFi module for APP cloud monitoring / support centralized parallel monitoring
  Other Parameters	Protections		Input over / low voltage, output over / low voltage, reverse connection, over temperature, short circuit, battery shedding etc.
  	Operating ambient temperature		-20℃~+50℃
  	Storage temperature		-40℃~+75℃
  	IP(Ingress protection)		IP21
  	Max. Battery wire (mm2/AWG)		30mm2
  	Max. Load wire (mm2/AWG)		30mm2
  	Recommended breaker		≥100A
  	Net weight (KG)/Gross weight (KG)		2.15 / 3.05

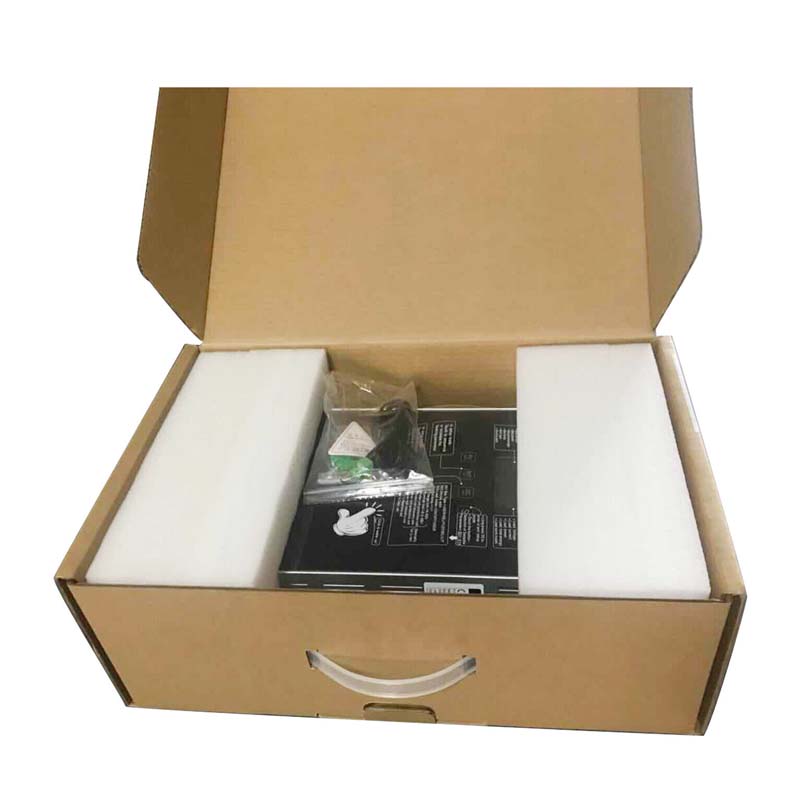

  	Product size (mm)/Packing size (mm)		305×185×72 / 420×275×150

System connection diagram
