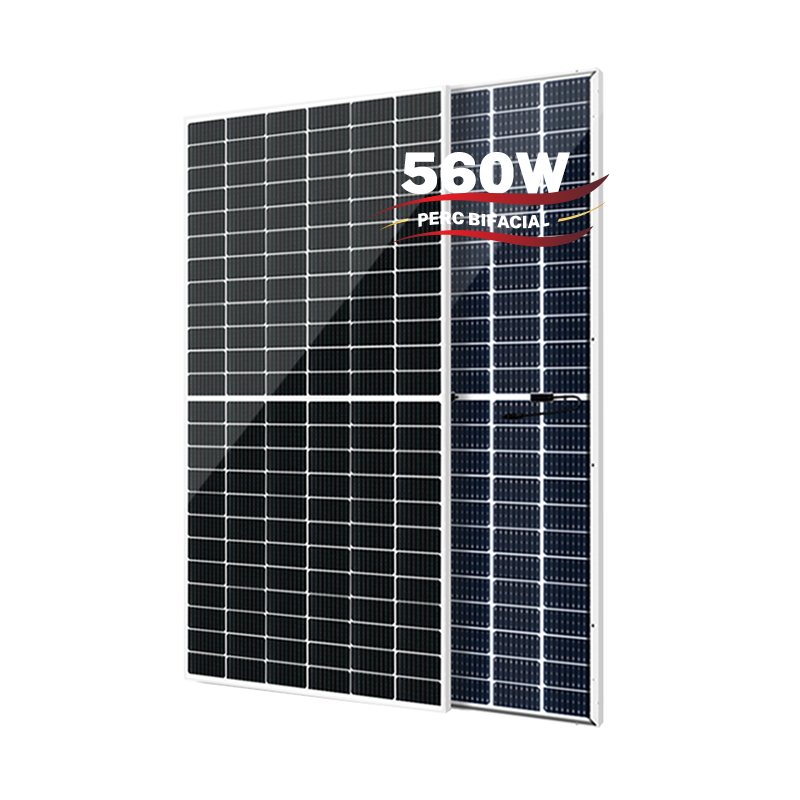

Higon 182mm Cell 550W 560W PERC Bifacial Half Cell Solar Panels For C&I
glass-glass solar panel
Higon 182mm Cell 550W 560W PERC Bifacial Half Cell Solar Panels For C&I
Higon 182mm Cell 550W 560W PERC Bifacial Half Cell Solar Panels For C&I

Higon 182mm Cell 550W 560W PERC Bifacial Half Cell Solar Panels For C&I

560W, Bifacial, PERC, Half Cell

  • Model No. :

    HG560-72HC12B
  • Nominal Power (Wp) :

    560
  • Max. System Voltage (V) :

    1500V
  • Weight (kg) :

    32.3
  • Dimension (mm) :

    2278×1134×35
  • Number of cells :

    72
  • Cells type :

    182mm Half Cell PERC Bifacial
  • Module Color :

    Silver/Glass
  • Module Efficiency (%) :

    21.7%
  • Certificate :

    CE, TUV



MORE THAN 1GW SHIPPED


Higon Solar focuses on value creation and in the spring of 2021 launches a new generation of high efficiency PV modules, the 182 series. The new series integrates 182mm large-size silicon wafers with PERC, multi-busbar, half-cell technologies and high-density encapsulation. Technology integration enables the 182 series to increase the efficiency of the module up to 21.7%, and a maximum power to 560W.

IMPROVED RELIABILITY

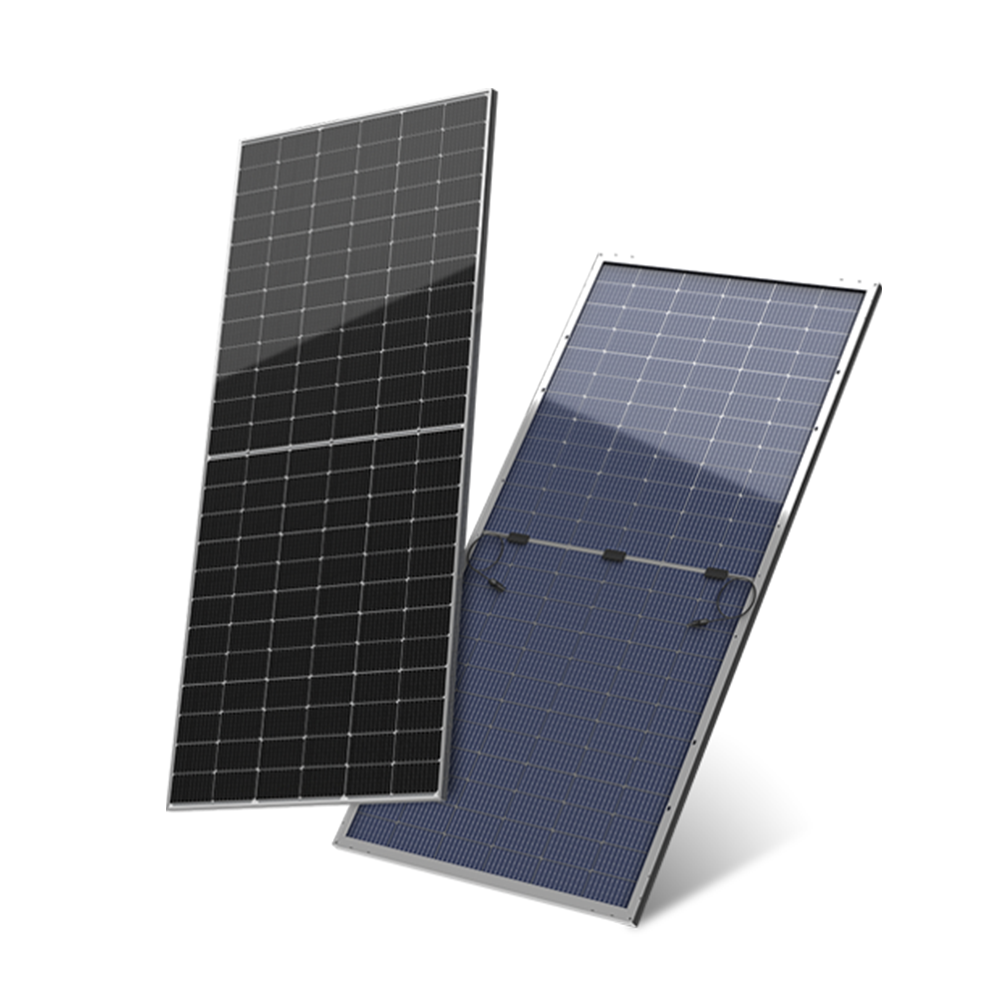

Compared with larger module products, the 182 bifacial series have a number of outstanding characteristics, such as a lower working current and power loss, a lower temperature coefficient, high low irradiance performance, high power output and low hot spot effects.
Moreover, it provides for two installation methods according to field conditions: by rails and clamps. In both cases, the 182 bifacial series modules are qualified for 5400Pa static load on the frontside even when there is no cross-beam support on the back.

DESIGNED FOR


COMMERCIAL & INDUSTRY PROJECTS





Specification

Module Type
HG550-72HC10B
HG555-72HC10B
HG560-72HC10B
Testing Condition
STC
NMOT
STC
NMOT
STC
NMOT
Maximum Power(Pmax/W)
550
416.2
555
420.0
560
423.8
Operating Voltage(Vmp/V)
41.93
38.90
42.18
39.12
42.43
39.32
Operating Current(Imp/A)
    13.12
10.70
13.16
10.74
13.20
10.78
Open-Circuit Voltage(Voc/V)
    49.80
47.01
50.08
47.28
50.36
47.55
Short-Circuit Current(Isc/A)
13.88
11.12
13.93
11.16
13.98
11.21
Module Efficiency
21.3
21.5
21.7
Nominal Module Operating Temperature(NMOT)
42 ± 2 °C
Temperature Coefficient of Pmax
-0.36%/°C
Temperature Coefficient of Voc
-0.304%/°C
Temperature Coefficient of Isc
+0.05%/°C
Different Rearside Power Gain
Rearside Power Gain
5%
15%
25%
Maxinum Power(Pmax/W)
567
621
675
Operating Voltage(Vmp/V)
41.8
41.8
41.9
Operating Current(Imp/A)
13.59
14.88
16.18
Open-Circuit Voltage(Voc/V)
49.5
49.5
49.6
Short-Circuit Current(Isc/A)
14.58
15.97
17.36
Module Efficiency(%)
21.9
24.0
26.1
Contact your sales rep. for detailed technical datasheet!
