The Higon ESS all in all container solution offers customers the flexibility to deploy the system at virtually any location on the grid. It supports various services, including emergency power, acting as a new energy stabilizer, energy shifting, load shaving, grid stabilization, and potentially frequency response (currently under development). Leveraging our extensive expertise in BESS (battery energy storage systems), vertical integration within the industrial chain, and effective ROI management, we provide a compelling energy storage solution.
Model No. :
HG1215K-500HWarranty :
10 YearsNominal Battery Energy :
1216.5 kWhNominal Voltage :
400Vac Three Phase 50HzBattery Capacity :
704V 192ADimension(mm) :
12192mm*2438mm*2591mmWeight(kg) :
26TCalendar Life :
6000 TimesCertification & Safety Standard :
CE/UN38.3
Higon Solar HG1215K-500H micro grid Energy Storage System is integrated in a customs-made outdoor container. System configuration includes 99 sets of customized lithium iron phosphate packs, 9 sets of customized battery clusters, 1 set of battery management system, 1 set of hybrid power conversation system (includes 500kW energy storage PCS, 2*250kW PV DC/DC converter, 500kW Static Transfer Switch, 500kVA isolation transformer), 1 set of energy management system, 1 set of gas fire control system, 1 set of environmental control system.
Specification of HG1215K-500H CONTAINER BESS
|
Model
|
HG1215K-500H |
|
System Rated Power
|
500kW
|
|
System Rated Capacity
|
1216.5kWh |
|
AC Rated voltage
|
400V (phase-phase)
|
|
AC Rated frequency
|
50Hz
|
|
AC Power factor
|
>0.99
|
|
AC Configuration
|
3-phase 4-wire
|
|
DC Rated voltage
|
704V
|
|
DC Lower voltage limit
|
616V
|
|
DC Upper voltage limit
|
792V |
|
DC Rated current
|
192A
|
|
DC Battery cell capacity
|
96 Ah
|
|
DC Battery cell QTY
|
3960
|
|
DC Battery module QTY
|
99
|
|
DC Module Spec.
|
2-parallel and 20-series
|
|
DC Nominal energy
|
1191.15kWh@0.5C,100%DOD,25℃
|
|
Battery Management Battery String
|
9 Strings
|
|
Battery Management Pack per String
|
11 packs
|
|
Battery Management Voltage accuracy
|
±0.5%
|
|
Battery Management Temp. accuracy
|
±2℃
|
|
Battery Management SOC accuracy
|
≤7%
|
|
Battery Management Capacity accuracy
|
≤1%
|
|
Battery String Cabinet(W*D*H)
|
890*750*1850
|
|
DC/DC Cabinet(W*D*H)
|
600*720*2050 (2 sets)
|
|
PCS cabinet(W*D*H)
|
1200*800*2050
|
|

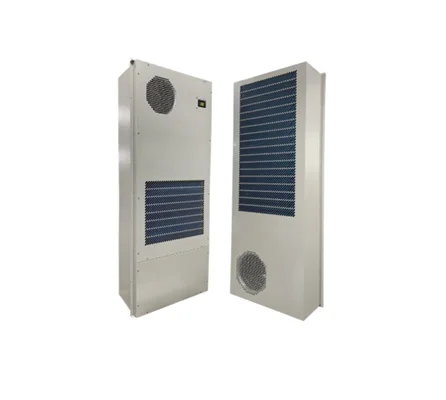

Air Conditioner Installation
|
Embedded
|
|
Air Conditioner Cooling Power
|
5*5 kW
|
|
Fire Extinguishing Agent
|
heptafluoropropane
|
|
Fire Extinguishing Startup mode
|
Heat
|
|
Communication Interface Wireless
|
4G/3G/2G, refresh every minute
|
|
Communication Interface Wired
|
Ethernet, refresh every 5 seconds
|
|
System Cycle Life
|
>5000 cycles@0.5C 25℃
|
|
DOD
|
90%
|
|
EOL
|
80% of BOL battery capacity
|
|
Capacity Availability
|
>80%
|
|
Weight
|
<26 t
|
|
Dimensions(W*D*H)
|
12192mm*2438mm*2591mm
|
Applicaiton Scenarios
The Higon ESS all in all container solution offers customers the flexibility to deploy the system at virtually any location on the grid. It supports various services, including emergency power, acting as a new energy stabilizer, energy shifting, load shaving, grid stabilization, and potentially frequency response (currently under development). Leveraging our extensive expertise in BESS (battery energy storage systems), vertical integration within the industrial chain, and effective ROI management, we provide a compelling energy storage solution.
